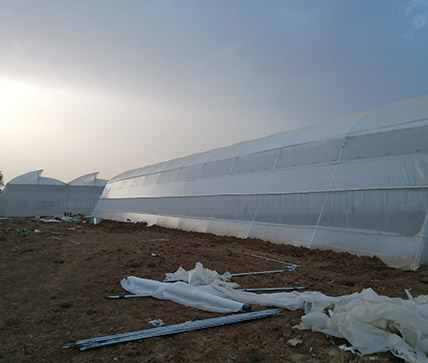

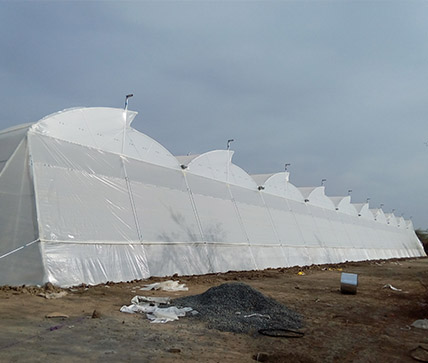

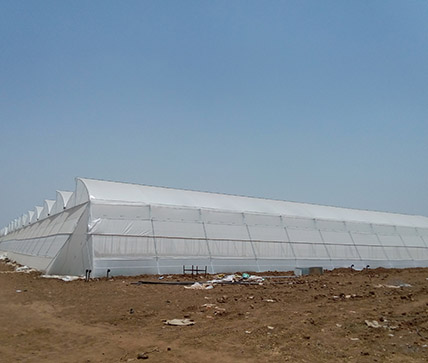

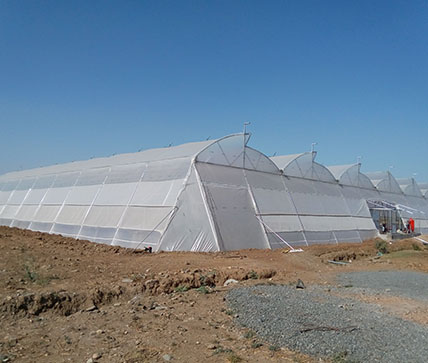

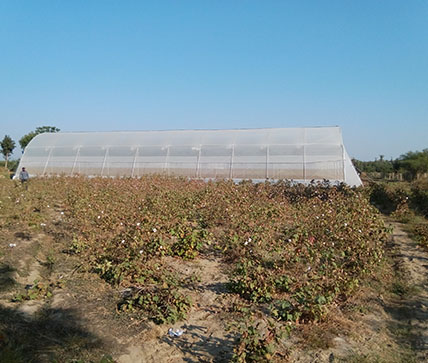

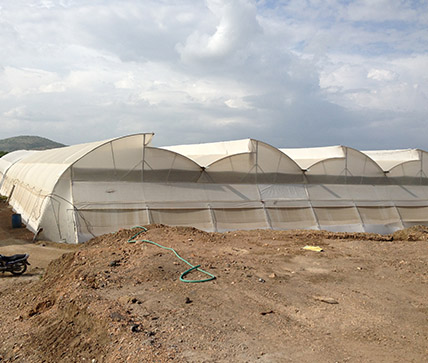

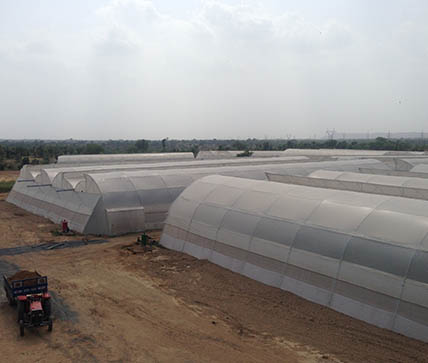

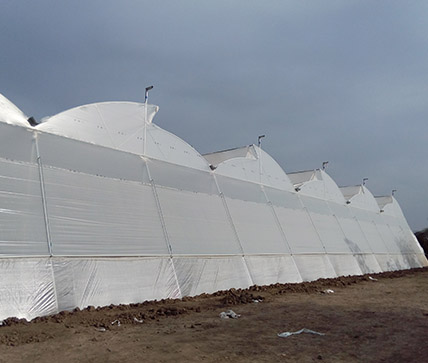

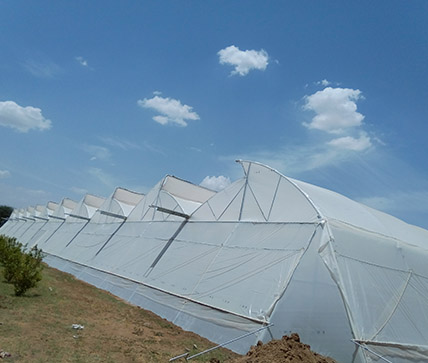

Shade Net House (Doom Type)

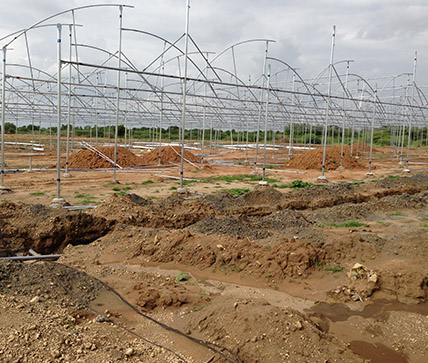

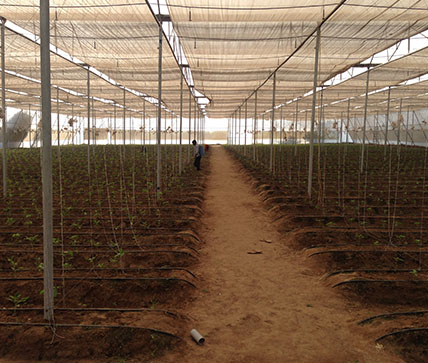

Shade net house is a framed structure made of G.I. pipes and covered with agro shade net material fixed to frame with gripper. Inside structure installed micro irrigation system and fogging system for control irrigation, fertigation, and temperature.

demo
Structure Parameter

SPAN - 8.0/10.0 MTR

BAY - 4.0/5.0/6.0 MTR

SIDE HEIGHT - 3.0 MTR TO 4.0 MT

TOP HEIGHT - 4.5 MTR TO 5.0 MTR

CANOPY/HOCKEY AREA - 2.0 MTR TO 2.5 MTR

TOTAL VENTILATION - UP TO 50%

Benefits
  • 40% higher production with best quality compared to open field crop cultivation
  • Economically viable compare to polyhouse (Low cost of construction)
  • Lower requirement of water, fertilizer and labour so reduce cost of cultivation.
  • Protect against insect, pest and disease for good health of plants.
  • Protect against natural factor like cyclone and birds etc.
  • Cultivation in all type of land.
  • Any crop cultivation in all season or off season for take a best rate in market.

TYPES OF CROPS CULTIVATION IN POLYHOUSE

  1. CUCUMBER (KHIRA)
  2. COLOUR CAPSICUM
  3. TOMATO

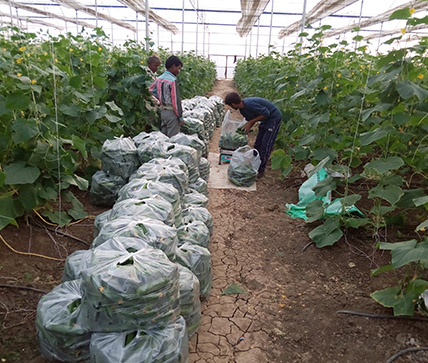

  1. CUCUMBER (KHIRA)

    SOIL PREPARATION

    FYM - 10 KG/SQ.MTR

    CASTOR CAKE - 250 GM/SQ.MTR

    NEEM CAKE - 250 GM/SQ.MTR

    BED LAYOUT
    demo
    BASEL DOSE

    DAP - 100 KG/4000 SQ.MTR

    SSP - 100 KG/4000 SQ.MTR

    MICRO NUTRIENTS GRANUALS - 10 KG/4000 SQ.MTR

    CARBOFURAN - 10 KG/4000 SQ.MTR

    demo
    CROP LIFE CYCLE 3 TO 4 MONTHS
    NO. OF PLANTS PER 4000 SQ.MTR 10,000 NOS.
    YIELD PER PLANTS IN 3 TO 4 MONTHS 4.5 KGS
    TOTAL PRODUCTION 4000 SQ.MTR IN 3 MONTHS 45,000 KGS
    SALES RATE PER KGS (Average Rate) RS. 15
    TOTAL INCOME (4000 SQ.MTR IN 3 TO 4 MONTHS) RS. 6,75,000
    SEEDS COST RS. 50,000
    OTHER OPERATION EXPENSE IN 3 TO 4 MONTHS RS. 1,00,000
    TOTAL EXPANSE IN 3 TO 4 MONTHS RS. 1,50,000
    NET INCOME IN 3 TO 4 MONTHS RS. 5,25,000

  2. COLOUR CAPSICUM

    SOIL PREPARATION

    FYM - 15 KG/SQ.MTR

    CASTOR CAKE - 300 GM/SQ.MTR

    NEEM CAKE - 300 GM/SQ.MTR

    BED LAYOUT
    demo
    demo
    BASEL DOSE

    D.A.P - 150 KG/4000 SQ.MTR

    S.S.P. - 150 KG/4000 SQ.MTR

    MICRO NUTRIENTS GRANUALS - 15 KG/4000 SQ.MTR

    CARBOFURAN - 15 KG/4000 SQ.MTR

    demo
    demo
    CROP LIFE CYCLE 1 YEAR
    NO. OF PLANTS PER 4000 SQ.MTR 10,000 NOS.
    YIELD PER PLANTS 5 KGS
    TOTAL PRODUCTION 50,000 KGS
    SALES RATE PER KGS (Average Rate) RS. 25
    TOTAL INCOME RS. 12,50,000
    PLANT COST RS. 1,00,000
    OTHER OPERATION EXPENSE RS. 3,00,000
    TOTAL EXPANSE RS. 4,00,000
    NET INCOME RS. 8,50,000

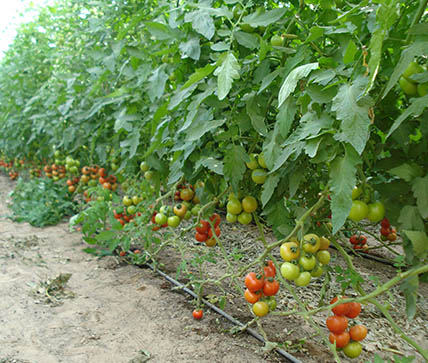

  3. TOMATO

    SOIL PREPARATION

    FYM - 10 KG/SQ.MTR

    CASTOR CAKE - 250 GM/SQ.MTR

    NEEM CAKE - 250 GM/SQ.MTR

    BED LAYOUT
    demo
    demo
    BASEL DOSE

    D.A.P - 100 KG/4000 SQ.MTR

    S.S.P. - 100 KG/4000 SQ.MTR

    MICRO NUTRIENTS GRANUALS - 10 KG/4000 SQ.MTR

    CARBOFURAN - 10 KG/4000 SQ.MTR

    demo

    demo
    CROP LIFE CYCLE 10 MONTHS
    NO. OF PLANTS PER 4000 SQ.MTR 10,000 NOS.
    YIELD PER PLANTS 10 KGS
    TOTAL PRODUCTION 1,00,000 KGS
    SALES RATE PER KGS (Average Rate) RS. 10
    TOTAL INCOME RS. 10,00,000
    PLANT COST RS. 50,000
    OTHER OPERATION EXPENSE RS. 3,00,000
    TOTAL EXPANSE RS. 3,50,000
    NET INCOME RS. 6,50,000

  1. ORCHIDS
  2. GERBERA
  3. ROSE

  1. ORCHIDS

    BED PREPARATION

    BED MEDIA- COCO CELL - 4 KG/SQ.MTR

    BED LAYOUT
    demo
    demo
    demo
    demo
    CROP LIFE CYCLE 7 YEARS
    NO. OF PLANTS PER 4000 SQ.MTR 40,000 NOS.
    YIELD PER PLANTS (1 YEAR) 6 TO 7 FLOWERS STICKS
    TOTAL PRODUCTION PER YEAR 2,40,000 FLOWER STICKS
    SALES RATE PER FLOWER STICK RS. 10
    TOTAL INCOME PER YEAR RS. 24,00,000
    PLANT COST FOR 7 YEARS RS. 22,00,000
    PLANT COST FOR 1 YEARS RS. 3,15,000
    BED PREPARATION COST FOR 7 YEARS RS. 7,00,000
    BED PREPARATION COST FOR 1 YEAR RS. 1,00,000
    OTHER EXPENCES PER YEAR RS. 4,00,000
    TOTAL EXPANCE PER YEAR RS. 8,15,000
    NET INCOME PER YEAR RS. 15,85,000

  2. GERBERA

    SOIL PREPARATION

    RED SOIL - 400 BRASS/4000 SQ.MTR

    FYM - 25 KG/SQ.MTR

    RICE HUSK - 0.5-2 KG/SQ.MTR

    LEAF MOULD - 25 KG/SQ.MTR

    NEEM CAKE - 500-1000 GM/SQ.MTR

    BED LAYOUT
    demo
    SOIL PREPARATION

    S.S.P. - 800 KG/4000 SQ.MTR

    MGSO4 - 120 KG/4000 SQ.MTR

    MICRO NUTRIENTS GRANUALS - 20 KG/4000 SQ.MTR

    HUMIC GRANUALS - 20 KG/4000 SQ.MTR

    CARBOFURAN - 20 KG/4000 SQ.MTR

    demo
    CROP LIFE CYCLE 4 YEARS
    NO. OF PLANTS PER 4000 SQ.MTR 24,000 NOS.
    YIELD PER PLANTS (1 YEAR) 30 FLOWERS
    TOTAL PRODUCTION PER YEAR 7,20,000 FLOWER
    SALES RATE PER FLOWER RS. 3
    TOTAL INCOME PER YEAR RS. 21,60,000
    PLANT COST FOR 4 YEARS RS. 8,64,000
    PLANT COST FOR 1 YEAR RS. 2,16,000
    BED PREPARATION COST FOR 4 YEARS RS. 4,00,000
    BED PREPARATION COST FOR 1 YEAR RS. 1,00,000
    OTHER EXPENCES PER YEAR RS. 4,00,000
    TOTAL EXPANCE PER YEAR RS. 7,16,000
    NET INCOME PER YEAR RS. 14,44,000

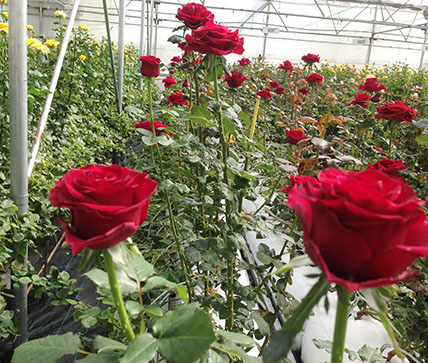

  3. ROSE

    SOIL PREPARATION

    RED SOIL - 400 BRASS/4000 SQ.MTR

    FYM - 25 KG/SQ.MTR

    RICE HUSK - 0.5-2 KG/SQ.MTR

    LEAF MOULD - 25 KG/SQ.MTR

    NEEM CAKE - 500-1000 GM/SQ.MTR

    BED LAYOUT
    demo
    BASEL DOSE

    D.A.P - 100 KG/4000 SQ.MTR

    S.S.P. - 100 KG/4000 SQ.MTR

    MICRO NUTRIENTS GRANUALS - 10 KG/4000 SQ.MTR

    CARBOFURAN - 10 KG/4000 SQ.MTR

    demo
    CROP LIFE CYCLE 4 YEARS
    NO. OF PLANTS PER 4000 SQ.MTR 24,000 NOS.
    YIELD PER PLANTS (1 YEAR) 25 FLOWERS
    TOTAL PRODUCTION PER YEAR 6,00,000 FLOWERS
    SALES RATE PER FLOWER RS. 3
    TOTAL INCOME PER YEAR RS. 18,00,000
    PLANT COST FOR 4 YEARS RS. 2,88,000
    PLANT COST FOR 1 YEAR RS. 72,000
    BED PREPARATION COST FOR 4 YEARS RS. 4,00,000
    BED PREPARATION COST FOR 1 YEAR RS. 1,00,000
    OTHER EXPENCES PER YEAR RS. 3,00,000
    TOTAL EXPANCE PER YEAR RS. 4,72,000
    NET INCOME PER YEAR RS. 13,28,000
